Overview

RadarSensing is a C/C++ radar data acquisition and visualization software built with the ImGui framework. This tool is designed to dramatically simplify radar operation by integrating all essential functions into a single, user-friendly interface. Users can configure all radar parameters, update firmware, collect data, and visualize results in real-time without complex setup procedures.

Core Features

Integrated Radar Management

• Firmware Update: Built-in firmware flashing and update capabilities
• Parameter Configuration: All radar settings configurable through GUI
• Real-time Control: Instant parameter adjustment with immediate feedback
• Device Detection: Automatic radar module recognition and connection

Data Acquisition & Processing

• Raw Data Collection: Direct radar signal capture and storage
• Signal Processing: Built-in FFT, filtering, and preprocessing algorithms
• Real-time Processing: Live signal analysis with minimal latency
• Data Export: Multiple format support for further analysis

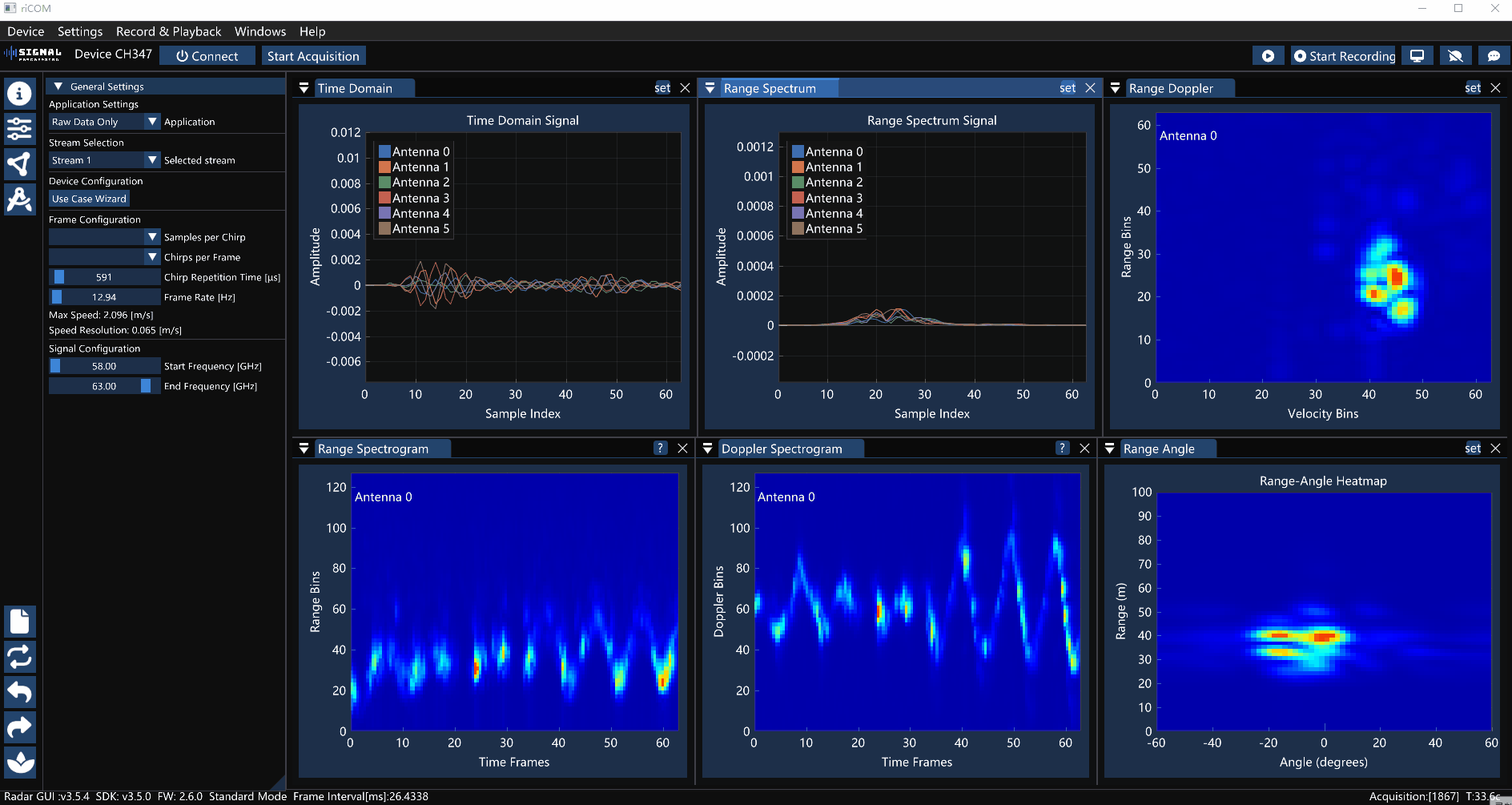

Visualization & Monitoring

• Real-time Display: Instant visualization of processed radar data
• Multiple Views: Range-Doppler maps, spectrograms, and time-domain plots

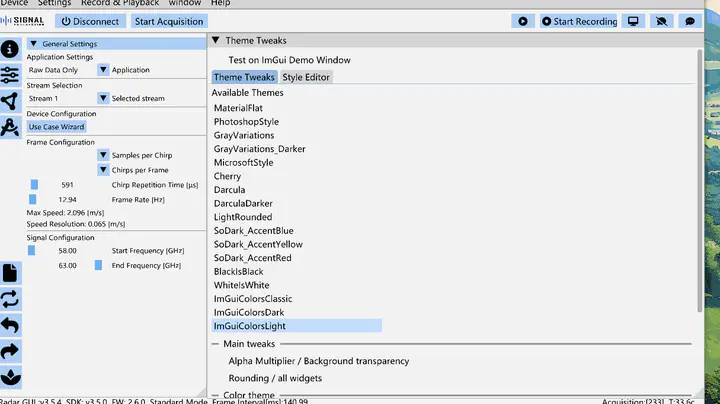

• Interactive Interface: ImGui-based responsive controls and displays
• Customizable Layout: Flexible window arrangement for different use cases

Technical Details

Development Stack

• Language: C/C++ for high performance
• GUI Framework: ImGui for immediate mode interface
• Graphics: OpenGL for real-time rendering
• Platform: Cross-platform compatibility (Windows/Linux)

Current Status

This project is currently in beta/development stage. Core functionalities are implemented and working, with ongoing improvements in:

• User interface refinement
• Additional signal processing algorithms
• Enhanced visualization options
• Performance optimization

Key Advantages

Simplified Operation

• One-Stop Solution: All radar operations in a single application
• No Complex Setup: Eliminates traditional multi-step radar configuration
• Intuitive Interface: Easy-to-use GUI for both beginners and experts
• Real-time Feedback: Immediate visualization of parameter changes

Performance & Efficiency

• Low Latency: C/C++ implementation for optimal performance
• Memory Efficient: Optimized for continuous operation
• Real-time Processing: Live data analysis without delays
• Responsive UI: ImGui ensures smooth user interaction

This software aims to bridge the gap between complex radar hardware and user-friendly operation, making radar technology more accessible for research, development, and practical applications.
